Triple Bank Louvers
What is Triple Bank Louvers?
Triple bank louvres offer the highest level of weather resistance, noise reduction, and debris protection. With three rows of blades, these louvres are specifically designed for harsh environments where extreme weather protection is required without compromising on ventilation.
Key Features:
- Maximum Weather Protection: Triple bank louvres provide the best defense against wind-driven rain, debris, and noise, making them ideal for areas with extreme weather conditions.
- Noise Reduction: The added layers of blades help absorb and deflect noise, making triple bank louvres excellent for projects requiring sound attenuation.
- Moderate Airflow: While triple bank louvres prioritize weather protection, they still maintain reasonable airflow, making them suitable for environments where both ventilation and maximum protection are critical.
Product Materials
Mild Steel
Aluminium
Aluminium Zinc
Stainless Steel
Finishes
Prepainted Polyester
Polyester Powder Coated
PVDF Powder Coated
Common Applications
High-performance buildings located in areas with heavy rainfall, strong winds, or extreme weather conditions.
Noise-sensitive environments such as hospitals, schools, or urban projects where external noise control is necessary.
Our Products

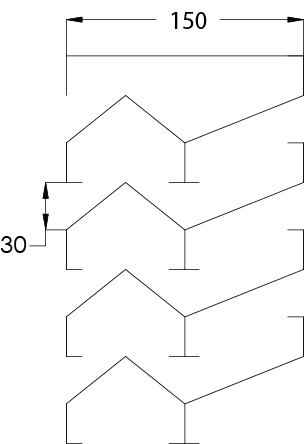

STORMZ F27
Key Features
| Free Area | 27% |
| Blade Girth | 316mm |
| Blade Orientation | Horizontal |
| Fixing Method | End Fixed |
| Louvers Depth | 150mm |
| Alzn 0.47mm thickness , Louvers Weight /m2 | 22.46kg |
Performance based on
EN13030 : 2001 testing results
| Effectiveness at 2/ms | 98.4% |
| Penetration Class | A |
| Airflow Class | 4 |
| Airflow Coefficient Ce | 0.109 |

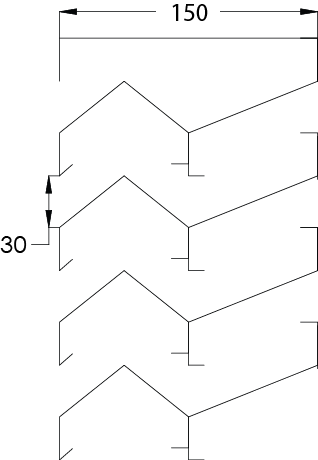

STORMZ F37
Key Features
| Free Area | 37% |
| Blade Girth | 309mm |
| Blade Orientation | Horizontal |
| Fixing Method | End Fixed |
| Louvers Depth | 150mm |
| Alzn 0.47mm thickness , Louvers Weight /m2 | 22.02kg |
Performance based on
EN13030 : 2001 testing results
| Effectiveness at 2/ms | 99.70% |
| Penetration Class | A |
| Airflow Class | 4 |
| Airflow Coefficient Ce | 0.124 |
STORMZ F50
Key Features
| Free Area | 50% |
| Blade Girth | 287mm |
| Blade Orientation | Horizontal |
| Fixing Method | End Fixed |
| Louvers Depth | 150mm |
| Alzn 0.47mm thickness , Louvers Weight /m2 | 20.65kg |
Performance based on
EN13030 : 2001 testing results
| Effectiveness at 2/ms | 96.70% |
| Penetration Class | B |
| Airflow Class | 3 |
| Airflow Coefficient Ce | 0.2 |

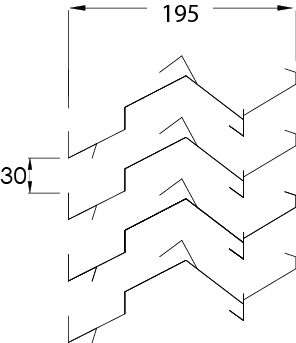

TB 2330 F50
Key Features
| Free Area | 48.74% |
| Blade Girth | 483mm |
| Blade Orientation | Horizontal |
| Fixing Method | End Fixed |
| Louvers Depth | 195mm |
| Alzn 0.47mm thickness , Louvers Weight /m2 | 37kg |
Performance based on
EN13030 : 2001 testing results
| Effectiveness at 2/ms | 100% |
| Penetration Class | A |
| Airflow Class | 4 |
| Airflow Coefficient Ce | 0.152 |
TB1831 F54
Key Features
| Free Area | 54% |
| Blade Girth | 331mm |
| Blade Orientation | Horizontal |
| Fixing Method | End Fixed |
| Louvers Depth | 225mm |
| Alzn 0.47mm thickness , Louvers Weight /m2 | 28kg |
Performance based on
EN13030 : 2001 testing results
| Effectiveness at 2/ms | 100% |
| Penetration Class | A |
| Airflow Class | 3 |
| Airflow Coefficient Ce | 0.223 |
STORMZ F27
Key Features
| Free Area | 27% |
| Blade Girth | 316mm |
| Blade Orientation | Horizontal |
| Fixing Method | End Fixed |
| Louvers Depth | 150mm |
| Alzn 0.47mm thickness , Louvers Weight /m2 | 22.46kg |
Performance based on EN13030 : 2001 testing results
| Effectiveness at 2/ms | 98.4% |
| Penetration Class | A |
| Airflow Class | 4 |
| Airflow Coefficient Ce | 0.109 |
STORMZ F37
Key Features
| Free Area | 37% |
| Blade Girth | 309mm |
| Blade Orientation | Horizontal |
| Fixing Method | End Fixed |
| Louvers Depth | 150mm |
| Alzn 0.47mm thickness , Louvers Weight /m2 | 22.02kg |
Performance based on EN13030 : 2001 testing results
| Effectiveness at 2/ms | 99.70% |
| Penetration Class | A |
| Airflow Class | 4 |
| Airflow Coefficient Ce | 0.124 |
STORMZ F50
Key Features
| Free Area | 50% |
| Blade Girth | 287mm |
| Blade Orientation | Horizontal |
| Fixing Method | End Fixed |
| Louvers Depth | 150mm |
| Alzn 0.47mm thickness , Louvers Weight /m2 | 20.65kg |
Performance based on EN13030 : 2001 testing results
| Effectiveness at 2/ms | 96.70% |
| Penetration Class | B |
| Airflow Class | 3 |
| Airflow Coefficient Ce | 0.2 |
TB 2330 F50
Key Features
| Free Area | 48.74% |
| Blade Girth | 483mm |
| Blade Orientation | Horizontal |
| Fixing Method | End Fixed |
| Louvers Depth | 195mm |
| Alzn 0.47mm thickness , Louvers Weight /m2 | 37kg |
Performance based on EN13030 : 2001 testing results
| Effectiveness at 2/ms | 100% |
| Penetration Class | A |
| Airflow Class | 4 |
| Airflow Coefficient Ce | 0.152 |
TB1831 F54
Key Features
| Free Area | 54% |
| Blade Girth | 331mm |
| Blade Orientation | Horizontal |
| Fixing Method | End Fixed |
| Louvers Depth | 225mm |
| Alzn 0.47mm thickness , Louvers Weight /m2 | 28kg |
Performance based on EN13030 : 2001 testing results
| Effectiveness at 2/ms | 100% |
| Penetration Class | A |
| Airflow Class | 3 |
| Airflow Coefficient Ce | 0.223 |
